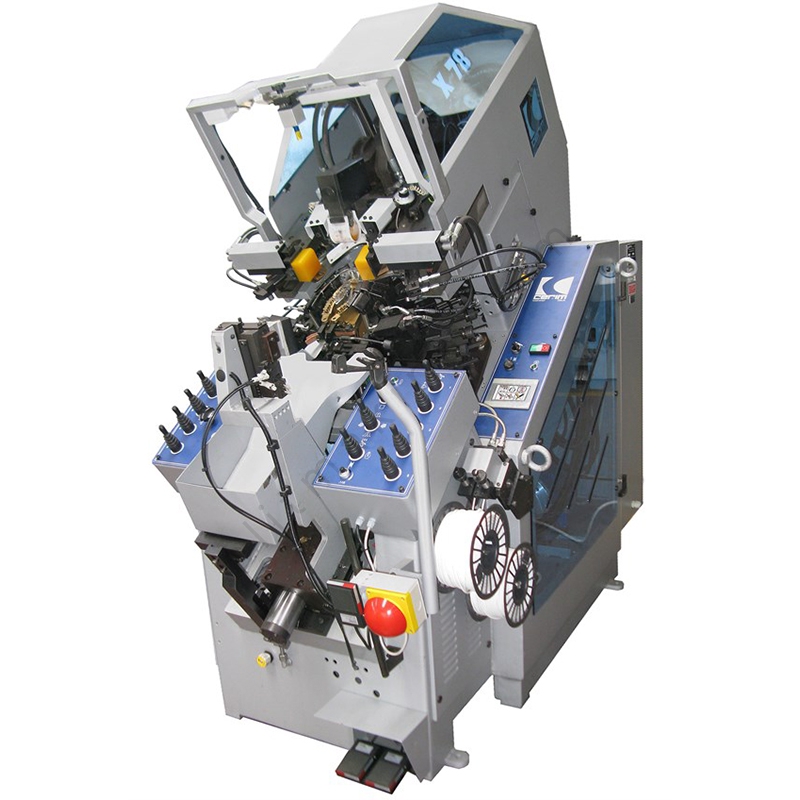

Cerim X 78 Automatic Toe Lasting Machine with Thermoplastic Injector

Hydraulic 9-Pincer Toe Lasting System

The Cerim X 78 is a versatile hydraulic toe lasting machine equipped with a 9-pincer setup and a programmable thermoplastic injector system. Capable of handling everything from small children’s footwear to large men’s sizes and high-heeled women’s fashion shoes, the X 78 delivers exceptional speed, accuracy, and lower operating costs compared to pneumatic alternatives.

With the standard base setup, the X 78 easily adapts to heavy-duty work boots and safety footwear equipped with steel or composite toe caps.

Key Features & Highlights

• 9-Pincer Rotary System: Features individually controlled, rotating pincers with adjustable opening timing and draft control—allowing effortless lasting even on the most complex upper designs.

• Thermoplastic Injector System: Features a movable injector unit with quick-change tips to accommodate different shoe lasts and geometries.

• Interactive Color Touchscreen with Self-Diagnostics: Enables fast adjustments to cycle timing, wiper positioning, and automatic sequences directly from the interface—no mechanical adjustments or electrical panel access required.

• Laser Positioning & Ergonomics: Equipped with a precision laser projector for accurate upper alignment and a movable rear support for maximum stability.

• High Versatility Across Heel Heights: Seamlessly transitions across all heel profiles, from flat casual soles to extreme women’s high heels.

• Dual-Stage Assembly Option (X 78 SS Model): The specialized X 78 SS variant completes the lasting cycle in two distinct hydraulic phases, offering extended lasting coverage along the waist/shank area.

Optional Features & Special Kits

• Safety & Heavy Duty Kit: Specialized components for safety boots with metal or composite toe caps.

• Specialty Footwear Configurations: Optional conversion kits for Goodyear Welted and San Crispino shoe construction.

• Advanced Lasting Controls: Optional motorized wiper/scissor opening, individual pincer release, horizontal rear draft, and left/right movable heel support.

• Pointed-Toe Women’s Kit: Tooling specialized for extreme pointed-toe women’s footwear.
